Lock/Unlock Switch

Rated Current：DC 12V-24V/10A

Mechanical Life：100,000 Cycles

Electrical Life：50,000 Cycles

IP65 Sealing Protection above panel

Insulation Resistance:100M-ohms(at 500V DC 1min)

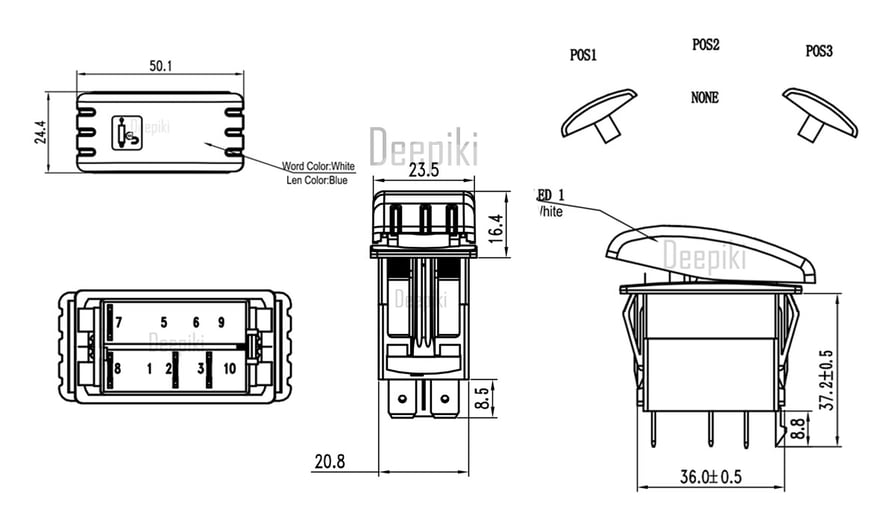

Technical Drawing
